For Factories with Water Circulation

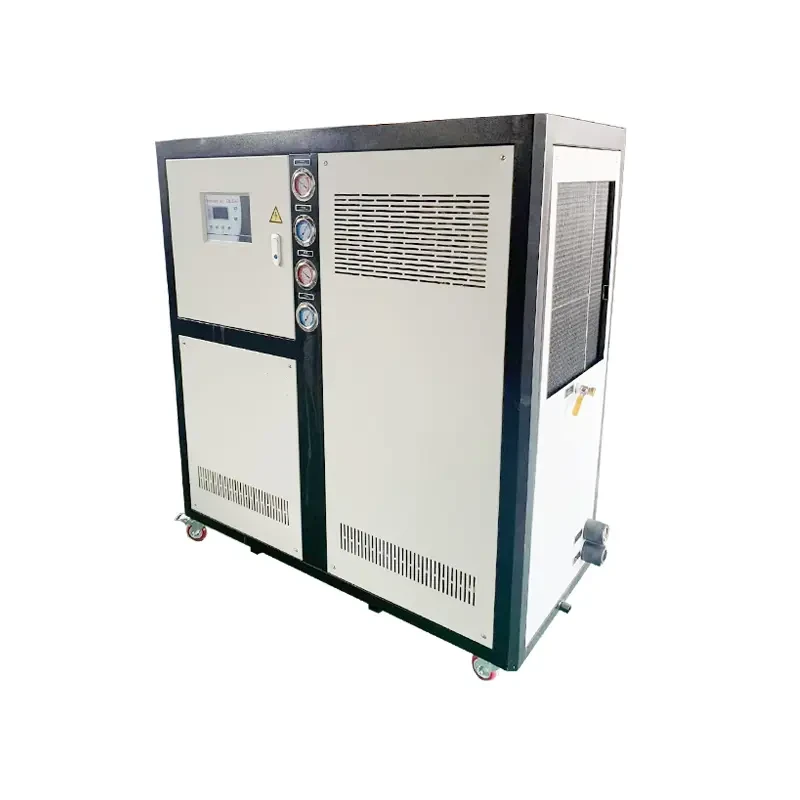

Our company makes this water-cooled industrial big cooler for factories that already have a cooling water circulation system. We started making industrial cooling equipment in Shenzhen in 2004. We moved to Kunshan, Jiangsu in 2014. We have a standard production workshop in Bacheng Town, Kunshan. Our factory has over 30 workers. The core team has more than ten years of experience. So our coolers are very stable. Let me give you a real example. Last year, an electronics factory in Zhejiang contacted us. Their workshop had 20 PCB drilling machines. These machines are very sensitive to temperature. When the temperature rises, drilling accuracy drops. They used air-cooled units before. But the workshop had a lot of dust, and the air-cooled units kept getting clogged. So we recommended this water-cooled industrial big cooler. We gave them model ATX-10WF. Its cooling capacity is 30 kW, which is 25,800 Kcal/h. Input power is 10.3 kW. Max running current is 19.2 A. Power supply is 380V three-phase. It uses a fully enclosed scroll compressor. Compressor power is 3.75 kW times 2. Cooling air flow is 10,000 m³/h. The customer connected it to their existing cooling tower. After using it, the drilling machine temperature stayed stable at 22°C. Product yield increased from 92% to 98%. The customer said the machine paid for itself in half a year.

Features of Water-Cooled Type

This water-cooled product has several features. First, it needs a cooling tower and a water pump. So it is suitable for factories that already have a water circulation system. Second, its energy efficiency is very high. For the same cooling capacity, it uses much less electricity than an air-cooled unit. Third, it is not affected by outdoor temperature. Air-cooled units lose cooling effect on hot summer days. Water-cooled units do not. Fourth, it is quieter than air-cooled units because it does not need large fans. Our models range from ATX-1/2WF to ATX-20WF. For example, ATX-03WF has 9 kW cooling, input power 3.97 kW, weight 130 kg. ATX-05WF has 15 kW cooling, input power 6.25 kW, weight 170 kg. ATX-12WF has 34 kW cooling, input power 12.2 kW, weight 360 kg. ATX-15WF has 46 kW cooling, input power 15.14 kW, weight 390 kg. ATX-20WF has 60 kW cooling, input power 20.2 kW, weight 540 kg. You can choose based on your workshop size and the number of machines.

Warranty and Customization

Many customers ask us several questions. First, how long is the warranty? We offer free warranty. During the warranty, we repair and replace parts for free. Second, can you customize? Yes, we support OEM and ODM. You bring your drawings, and we make them. Customization takes one to two months. Third, what is the minimum order? One unit. Fourth, do you do a full check before shipping? Yes, we test every machine 100% before it leaves the factory. Our factory has complete testing equipment. From parts to the finished unit, every step is strictly checked. Fifth, what if parts break during shipping? We check what is broken. If a part is crushed, we send a new part. Our goal with this water-cooled industrial big cooler is simple: let factories with water circulation use more energy-efficient and quieter cooling equipment.

Specification Table

Parameter	Unit	ATX-1/2WF	ATX-01WF	ATX-02WF	ATX-03WF	ATX-04WF	ATX-05WF	ATX-06WF	ATX-08WF	ATX-10WF	ATX-12WF	ATX-15WF	ATX-20WF
Cooling capacity (50HZ)	KW	1.5	3	5	9	12	15	18	24	30	34	46	60
Cooling capacity (50HZ)	Kcal/h	1300	2580	4300	7740	10300	12900	15500	21000	25800	29240	39560	51600
Input power	KW	1	1.3	2.97	3.97	4.8	6.25	7.35	10.1	10.3	12.2	15.14	20.2
Max running current	A	4.5	5.83	13.4	7.8	9.9	12.2	14.3	19.7	19.2	23	29.5	39.4
Power supply	-	1N-220V 50HZ	Same	Same	3N-380V 50HZ	Same	Same	Same	Same	Same	Same	Same	Same
Refrigerant	-	R22	R22	R22	R22	R22	R22	R22	R22	R22	R22	R22	R22
Refrigerant charge	KG	0.45	0.65	1.3	1.95	2.6	3.25	3.9	2.6*2	8.6	10	13	8.5*2
Refrigerant control	-	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary	Capillary
Compressor type	-	Hermetic rotary	Same	Same	Hermetic scroll or piston	Same	Same	Same	Same	Same	Same	Same	Same
Compressor power	KW	0.55	0.75	1.5	2.25	3	3.75	4.5	3*2	3.75*2	4.5*2	5.5*2	7.5*2
Cooling air flow	M³/h	500	1000	2000	3000	4000	5000	6000	8000	10000	12000	15000	20000
Evaporator type	-	Finned type	Same	Same	Same	Same	Same	Same	Same	Same	Same	Same	Same
Fan power	KW	0.375	0.375	0.75	0.75	0.75	1.5	1.5	1.5	2.2	2.2	2.2	3.75
Fan pressure	Kpa	0.55	0.75	1.25	1.8	2.4	3	3.8	4.7	6	7.3	9.5	12.7
Length	MM	680	680	680	945	945	1033	1033	1470	1470	1470	1680	1950
Width	MM	420	420	420	565	565	613	613	710	710	710	890	950
Height	MM	780	780	780	1400	1400	1420	1420	1600	1600	1600	1830	1940
Weight	KG	45	60	120	130	160	170	250	270	340	360	390	540
