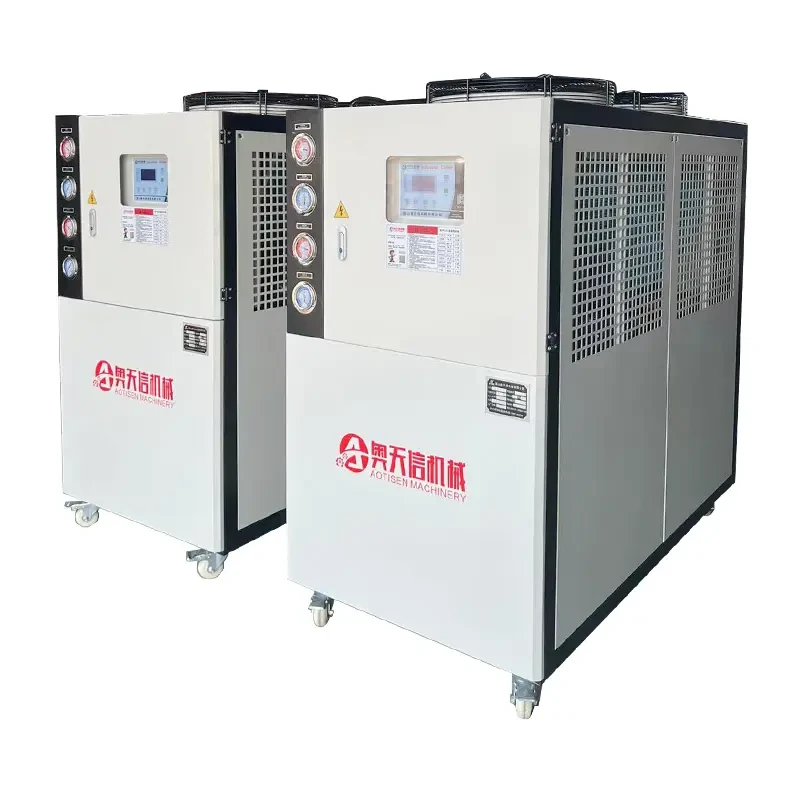

Portable Industrial Chillers

Send Inquiry
Portable Industrial Chillers
Details
Maintaining this portable industrial chillerss requires some attention. First, check the voltage and current often. Normal working voltage is 220V. Current should be between 4.1 and 15.8 A. Second, check if the refrigerant is low. Look at the pressure gauge on the front of the machine.
Category
Industrial Cooling Unit
Share to
Description
modular-1
Cooling on Wheels

Our company started in Shenzhen in 2004. We moved to Kunshan in 2014. Now our factory has 3,000 square meters and 35 workers. We have our own R&D team. Our core team has more than ten years of experience. This portable industrial chillers is designed to be small. You can push it around. Take it wherever you need cooling. Last year, a laboratory in Shanghai contacted us. They had a laser marking machine. The machine got hot when working. When the temperature rose, the laser power became unstable. They wanted a small chiller, but the lab had very little space. A big machine would not fit. So we recommended the ATX-02A portable industrial chillerss to them. Its cooling capacity is 5.67 kW, which is 4,872 Kcal/h. Total input power is 2.6 kW. Max running current is 15.8 A. Power supply is 220V single phase. It uses a fully enclosed rotary compressor with power 1.5 kW. Cooling air flow is 2,000 m³/h. Chilled water flow is 0.97 m³/h. The chilled water tank is 0.038 m³. The water pipe size is G3/4 inches. The machine is 820 mm long, 460 mm wide, and 1,170 mm high. Weight is only 120 kg. One person can push it around. After use, the laser marking machine temperature stabilized. The marks became much clearer. The customer said this small machine solved a big problem.



Maintenance Tips



Maintaining this portable industrial chillerss requires some attention. First, check the voltage and current often. Normal working voltage is 220V. Current should be between 4.1 and 15.8 A. Second, check if the refrigerant is low. Look at the pressure gauge on the front of the machine. During normal operation, high pressure should be 11 to 17 kg, and low pressure should be 3 to 5 kg. When the machine is off, both high and low pressure should be around 0.6 kg. Third, clean the system regularly. After six months of operation, clean the pipes, filters, condenser, and fan. The fan is like a household fan. If dust builds up, heat dissipation gets worse. Cooling performance will drop. Our models include ATX-1/2A, ATX-01A, ATX-02A, ATX-03A, ATX-04A, ATX-05A, ATX-06A, and ATX-08AD. The smallest, ATX-1/2A, has a cooling capacity of 1.53 kW and weighs 45 kg. The largest, ATX-08AD, has 21.8 kW cooling and weighs 270 kg.

17 2
17 3

Common Questions



Customers often ask a few questions. First, how long is the warranty? We offer free warranty. During the warranty, we repair and replace parts for free. Second, can you customize? Yes, we support OEM and ODM. You bring your drawings, and we make them. Customization takes one to two months. Third, can I order just one unit? Yes, one unit is fine. Fourth, do you do a full check before shipping? Yes, we test every machine 100% before it leaves the factory. Fifth, what if parts break during shipping? We check what is broken. If a part is crushed, we send a new part. We make 1,200 units per month. Standard machines ship in 15 days. Our goal with this portable industrial chillers is to give customers with small spaces and mobile needs a reliable device.

Specification Table



Parameter

Unit

ATX-1/2A

ATX-01A

ATX-02A

ATX-03A

ATX-04A

ATX-05A

ATX-06A

ATX-08AD

Cooling capacity (50HZ)

KW

1.53

2.94

5.67

8.39

10.9

13.95

16.9

21.8

Cooling capacity (50HZ)

Kcal/h

1316

2528

4872

7216

9374

11990

14530

18748

Total input power

KW

0.68

1.31

2.6

3.6

4.5

4.8

6.6

8.6

Max running current

A

4.1

8

15.8

8.8

10.9

13.4

16

20.9

Power supply

-

1N-220V-50HZ

Same

Same

3N-380V-50HZ

Same

Same

Same

Same

Refrigerant

-

R22

R22

R22

R22

R22

R22

R22

R22

Refrigerant charge

KG

0.6

0.8

1.8

2.7

3.5

4.3

5

3.5*2

Refrigerant control

-

Capillary

Capillary

Capillary

Capillary

Capillary

Capillary

Capillary

Capillary

Compressor type

-

Hermetic rotary

Same

Same

Hermetic scroll or piston

Same

Same

Same

Same

Compressor power

KW

0.55

0.75

1.5

2.25

3

3.75

4.5

3*2

Cooling air flow

M³/h

800

1000

2000

3000

4000

5000

6000

8000

Chilled water flow

M³/h

0.26

0.51

0.97

1.44

1.87

2.40

2.91

3.75

Chilled water tank

0.023

0.023

0.038

0.066

0.066

0.066

0.066

0.166

Water pipe size

-

G1/2"

G1/2"

G3/4"

G1"

G1"

G1"

G1"

G1-1/2"

Water pump power

KW

0.375

0.375

0.375

0.375

0.375

0.75

0.75

0.75

Water pump pressure

Kpa

180

180

250

242

242

290

290

290

Length

MM

600

680

820

945

945

1033

1033

1470

Width

MM

400

420

460

565

565

613

613

710

Height

MM

940

780

1170

1400

1400

1420

1420

1600

Weight

KG

45

60

120

130

160

170

250

270
