Simple and Durable

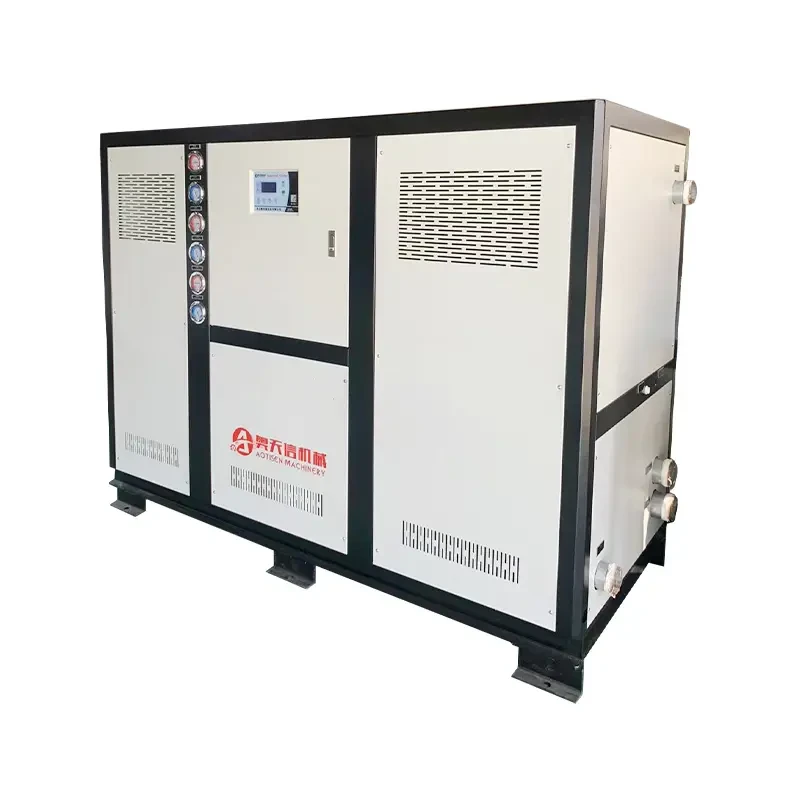

Our company has its own technical team. We do not do OEM for others. Every machine is designed, assembled, and tested by us. We have worked with Danfoss (Denmark) for many years. The expansion valves and filter driers are all from Danfoss. This water chiller for industrial use is our best-selling model. Why does it sell so well? Because it is tough. It does not break easily. And if it does break, it is easy to fix. A food factory in Changsha, Hunan contacted us. They had a jelly production line. The jelly liquid needed to be cooled to 8 degrees before filling. Before, they used ice blocks to cool. But the ice temperature was not stable. Sometimes too cold, sometimes not cold enough. The jelly did not set well. Then we installed an ATX-08WD product for them. Its cooling capacity is 24.85 kW, which is 21,375 Kcal/h. Total input power is 6.8 kW. Max running current is 16.5 A. Power supply is 380V three-phase. R22 refrigerant charge is 2.2 kg times 2. It uses a fully enclosed scroll compressor with power 3 kW times 2. Cooling water flow is 5.34 m³/h. The chilled water tank is 0.11 m³. The water pipe size is G1-1/2 inches. Dimensions are 1,300 mm long, 610 mm wide, and 1,420 mm high. Weight is 210 kg. After using it, the jelly liquid temperature stayed stable at 8 degrees. The jelly set evenly. The defect rate dropped from 12% to 3%. The customer said this machine paid for itself in half a year.
Model Range and Features
This water chiller for industrial use comes in several parameter sets. The ATX-03W has a cooling capacity of 9.59 kW and input power of 2.8 kW, weight 120 kg. The ATX-05W has 15.91 kW cooling, input power 4.5 kW, weight 150 kg. The ATX-10WD has 31.83 kW cooling, input power 8.4 kW, weight 290 kg. The ATX-12WD has 38.37 kW cooling, input power 10.1 kW, weight 310 kg. The ATX-15WD has 50.14 kW cooling, input power 13.1 kW, weight 400 kg. It uses a capillary tube or external balance thermal expansion valve to control the refrigerant. Compressor power ranges from 2.25 kW to 5.5 kW times 2. Chilled water pipe sizes range from G3/4 inches to G2 inches. Water pump pressure is 205 to 290 kPa. The feature of this machine is its simple structure. There are no complicated parts. So the failure rate is very low.
Lifetime Support
Our company has a 24-hour after-sales hotline. For domestic customers, we respond within 2 hours in the same city. For other cities, our engineer arrives within 24 hours. Our service centers in each region keep common spare parts. Many customers ask, what happens after the warranty period ends? We provide lifetime maintenance. This includes equipment inspection, part upgrades, technical guidance, and operation training. We will always ensure the equipment runs stably. Other common questions: Can you customize? Yes, we support OEM and ODM. Can I order just one unit? Yes. Do you do a full check before shipping? Yes, we test every machine 100% before it leaves the factory. What if parts break during shipping? If a part is crushed, we send a new part. We make 1,200 units per month. Standard machines ship in 15 days. Our idea with this water chiller for industrial use is simple: use the simplest design to make the toughest machine. Let customers buy it and then forget about problems.
Specification Table
|
Parameter |
Unit |
ATX-03W |
ATX-04W |
ATX-05W |
ATX-06W |
ATX-08WD |
ATX-10WD |
ATX-12WD |
ATX-15WD |
|
Cooling capacity (50HZ) |
KW |
9.59 |
12.43 |
15.91 |
19.18 |
24.85 |
31.83 |
38.37 |
50.14 |
|
Cooling capacity (50HZ) |
Kcal/h |
8251 |
10682 |
13690 |
16503 |
21375 |
27370 |
32994 |
43120 |
|
Total input power |
KW |
2.8 |
3.55 |
4.5 |
5.4 |
6.8 |
8.4 |
10.1 |
13.1 |
|
Max running current |
A |
6.7 |
8.4 |
10.4 |
12.6 |
16.5 |
20.4 |
24.6 |
31.8 |
|
Power supply |
- |
3N-380V-50HZ |
Same |
Same |
Same |
Same |
Same |
Same |
Same |
|
Refrigerant |
- |
R22 |
R22 |
R22 |
R22 |
R22 |
R22 |
R22 |
R22 |
|
Refrigerant charge |
KG |
1.7 |
2.2 |
2.8 |
3.4 |
2.2*2 |
2.8*2 |
3.4*2 |
4.2*2 |
|
Refrigerant control |
- |
Capillary |
Capillary |
Capillary |
Capillary |
Capillary |
Capillary |
External balance thermal expansion valve |
Same |
|
Compressor type |
- |
Hermetic scroll or piston |
Same |
Same |
Same |
Same |
Same |
Same |
Same |
|
Compressor power |
KW |
2.25 |
3 |
3.75 |
4.5 |
3*2 |
3.75*2 |
4.5*2 |
5.5*2 |
|
Cooling water flow |
M³/h |
2.06 |
2.67 |
3.42 |
4.13 |
5.34 |
6.85 |
8.24 |
10.78 |
|
Cooling water pipe size |
- |
G3/4" |
G3/4" |
G1" |
G1-1/2" |
G1-1/2" |
G1-1/2" |
G2" |
G2" |
|
Chilled water flow |
M³/h |
1.65 |
2.14 |
2.74 |
3.3 |
4.27 |
5.47 |
6.59 |
8.62 |
|
Chilled water tank |
M³ |
0.038 |
0.038 |
0.065 |
0.08 |
0.11 |
0.166 |
0.166 |
0.258 |
|
Chilled water pipe size |
- |
G3/4" |
G3/4" |
G1" |
G1" |
G1-1/2" |
G2" |
G2" |
G2" |
|
Water pump power |
KW |
0.375 |
0.375 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
|
Water pump pressure |
Kpa |
242 |
242 |
290 |
290 |
290 |
205 |
205 |
205 |
|
Length |
MM |
830 |
830 |
1080 |
1080 |
1300 |
1300 |
1300 |
1680 |
|
Width |
MM |
460 |
460 |
580 |
550 |
610 |
610 |
610 |
770 |
|
Height |
MM |
1020 |
1020 |
1230 |
1230 |
1420 |
1420 |
1420 |
1470 |
|
Weight |
KG |
120 |
140 |
150 |
200 |
210 |
290 |
310 |
400 |
