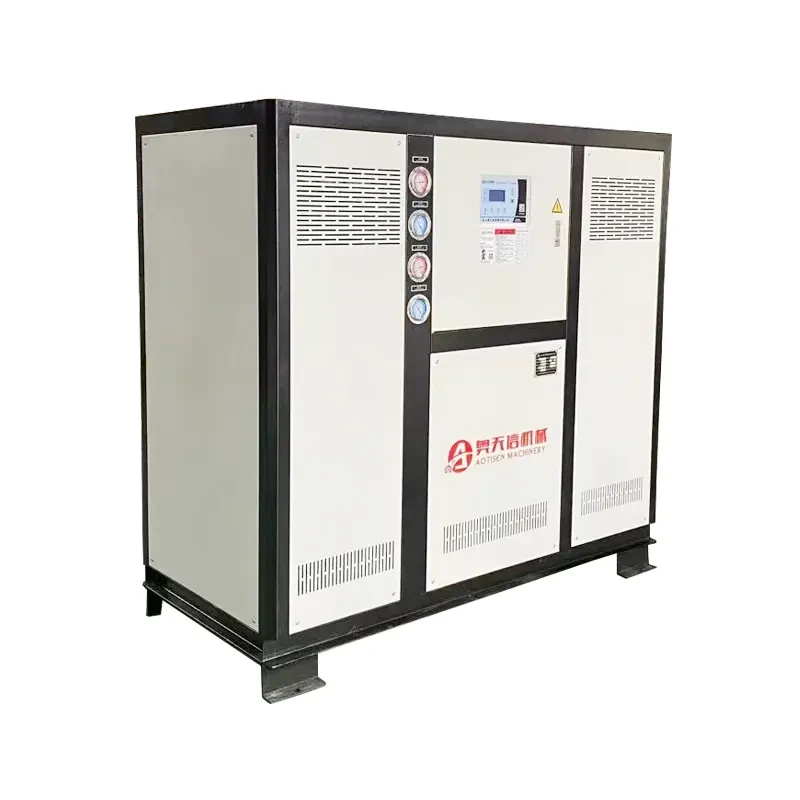

Water Chiller Cooler

Our company has a habit. Before we release a new machine, we calculate one thing. How much electricity does this machine save compared to the previous generation? How much does it save compared to competitors? For this water chiller cooler, we did the math. It saves an average of 25% electricity compared to an air-cooled unit of the same cooling capacity. Why does it save electricity? Because it uses a shell-and-tube condenser. Water conducts heat much more efficiently than air. An electronics factory in Shaoxing, Zhejiang did the math. Their clean workshop had eight placement machines. These machines have a strict temperature requirement. 24 degrees plus or minus 1 degree. Before, they used air-cooled units. Their electricity bill in summer was 32,000 RMB per month. Later they switched to our ATX-35WT water chiller cooler. This machine has a cooling capacity of 117.28 kW. Total input power is 29.4 kW. Max running current is 65.4 A. Power supply is 380V three-phase. R22 refrigerant charge is 6.2 kg times 3. It uses a fully enclosed scroll compressor with power 9 kW times 3. Cooling water flow is 25.22 m³/h. The chilled water tank is 0.55 m³. The water pipe size is G2-1/2 inches. After connecting to the cooling tower, the first month's electricity bill dropped to 21,000 RMB. They saved 11,000 RMB. Over a year, that is over 100,000 RMB saved. The customer said this machine gives them money.
