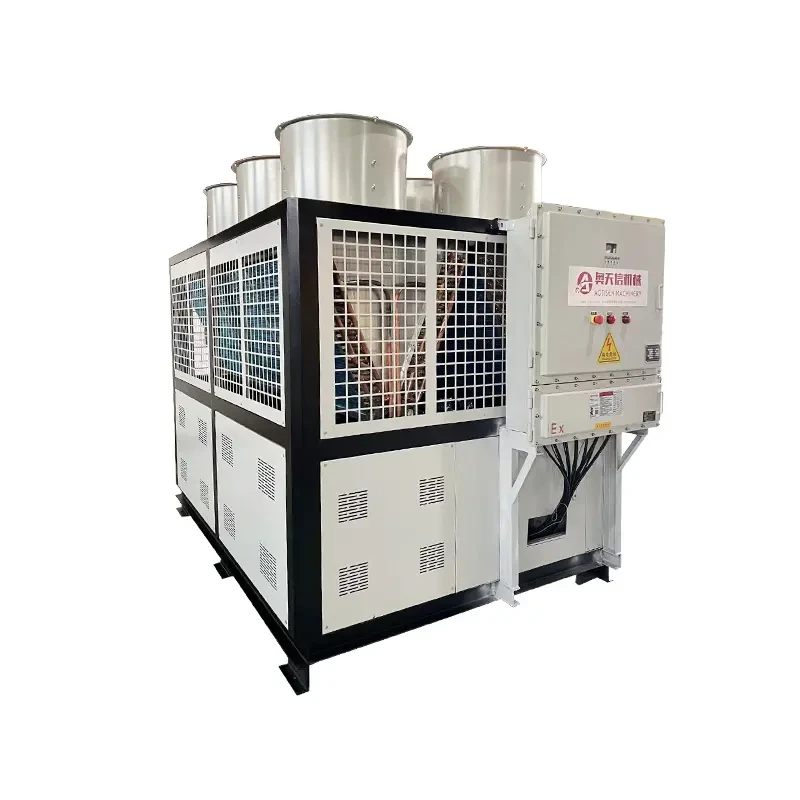

Low Temperature Water Chiller

Our company has its own R&D team. Our engineers have worked for over ten years. We have worked with Sanyo (Japan) for a long time. Our compressors are all good quality. This low temperature water chiller can drop water temperature below zero. The lowest can reach minus 30 degrees. It is different from ordinary chillers. Ordinary chillers usually only go down to 5 to 10 degrees. This one is for factories that need low-temperature processes. Last year, a chemical factory in Jiangsu contacted us. They had a reactor. The reaction generated heat. The temperature had to be kept at minus 5 degrees. Otherwise, the product would spoil. They used another brand of chiller before, but the water temperature only went down to 5 degrees. That was not enough. So we installed an ATX-08D product for them. Its cooling capacity is 7.83 kW, which is 6,732 Kcal/h. Input power is 8.6 kW. Max running current is 15.8 A. Power supply is 380V three-phase. R22 refrigerant charge is 3.5 kg times 2. It uses a fully enclosed scroll compressor with power 3 kW times 2. Cooling air flow is 8,000 m³/h. Chilled water flow is 3.75 m³/h. The chilled water tank is 0.17 m³. The water pipe size is G1-1/2 inches. After installation, the reactor temperature stayed stable at minus 5 degrees. The product pass rate increased from 70% to 95%. The customer said this machine saved his orders.
