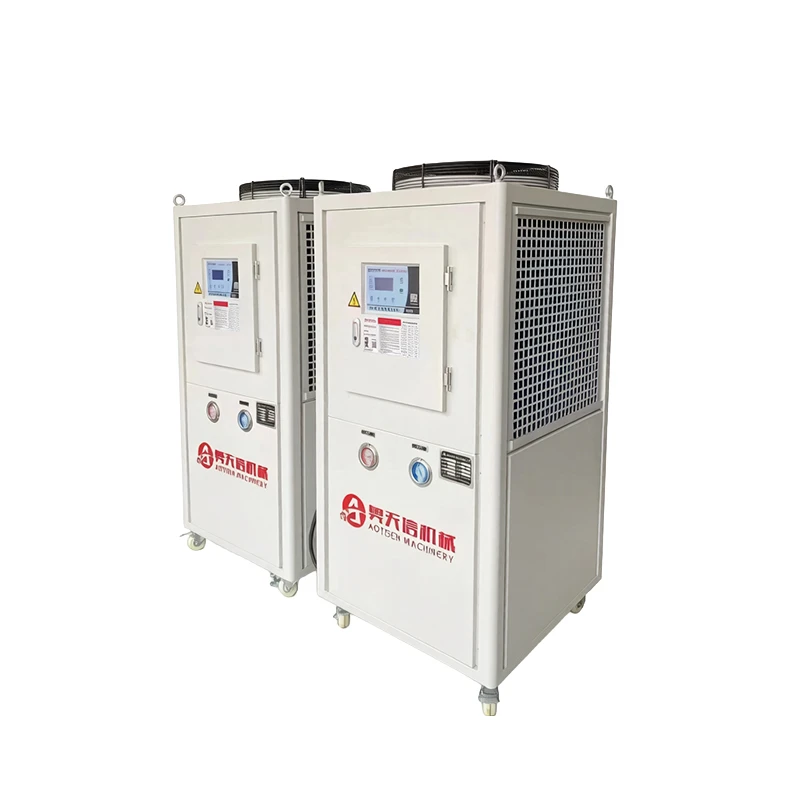

Hydraulic Oil Chiller Unit

Reliable Cooling for Hydraulic Systems

We produce the hydraulic oil chiller unit. Our factory in Kunshan Aotianxin Machinery Co., Ltd. makes this product to cool hydraulic oil. Many hydraulic systems run for long hours. The oil temperature becomes very high after long use. High oil temperature speeds up seal aging. It also makes the hydraulic oil thinner. Thin oil causes lower pressure and slower machine movement. Our product pumps the hot oil out. It cools the oil down. Then it sends the cool oil back to the tank. This process lets your hydraulic system run all day without stopping. You can trust our product for continuous work.

Three Models with Clear Power Data



We offer three models of the product. They are ATX-05AF, ATX-06AF, and ATX-08AF. The table below shows their main specifications. We design the oil side flow channel with special care. Hydraulic oil has high viscosity. It can block the heat exchanger easily. So we choose wide-channel plate heat exchangers or shell-and-tube heat exchangers. These have much larger oil channels than common units. We also add an oil filter. This filter stops dirt from entering the cooler. We also match the oil pump motor to your hydraulic system's flow and pressure. This ensures smooth oil circulation. Our hydraulic oil chiller unit works well with all common hydraulic oils.

Our engineer team has many years of experience with hydraulic systems. You just tell us the tank volume, oil pump flow, and your target oil temperature. Then we calculate the needed cooling capacity. We will recommend the right product for you. We also offer custom work. For example, we can change the voltage and frequency. We can use different oil port threads. We can add an oil temperature controller. The most common issues with a product are oil line blockages or a bad oil temperature sensor. We teach you how to clean the filter and change the sensor. Our warehouse keeps oil pumps, heat exchangers, controllers, and other parts. We ship them fast. After the warranty, we give life-long support. When you choose our hydraulic oil chiller unit, you pick a dedicated device that resists blockages and matches your oil flow.
