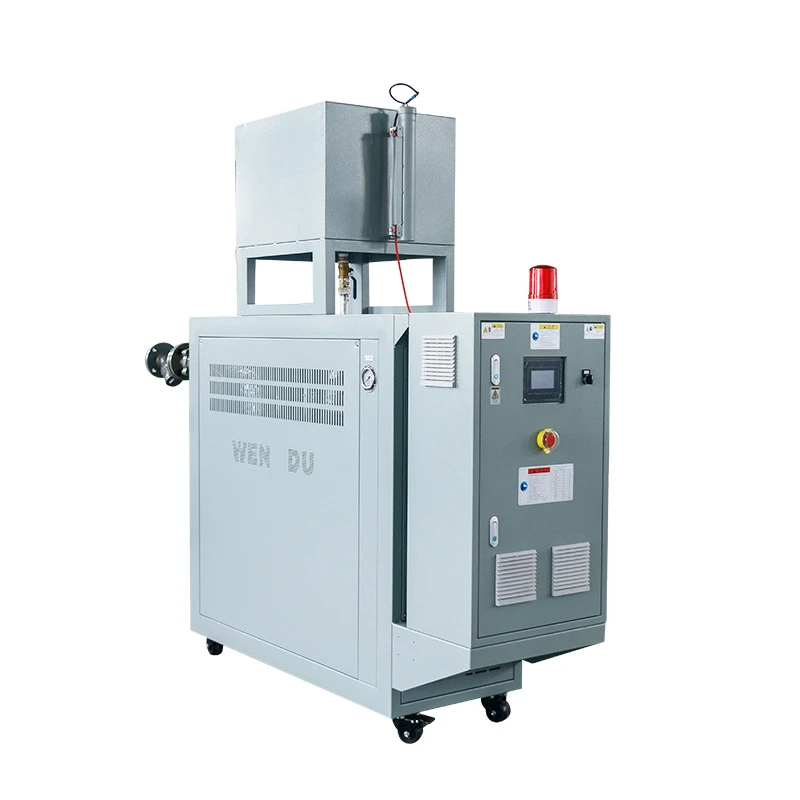

Water Mold Temperature Controller

Clean and Fast Heating with Water

We produce the water mold temperature controller. Our factory in Kunshan Aotianxin Machinery Co., Ltd. makes this product using water as the heat transfer medium. Water has a high heat capacity. It is cheap and leaves no oil stains. This product suits applications where the temperature does not exceed 120°C. Many injection molding plants like water-based controllers because they are clean and simple to maintain. Our product keeps mold temperature within plus or minus 1°C. That gives you excellent precision.

One Model with Large Water Flow



We have one model of the product. It is ATX-12KW. The table below shows you the key numbers. In our design, we pay special attention to pump head and flow matching. The pump we choose moves 110 liters per minute. The head is high enough to push water to every corner of the mold. We also add an electronic flow switch. When water flow is too low, the switch gives an alarm and stops the heater. This prevents dry-heating damage. Our heating cylinder uses stainless steel with a polished inner wall. It does not build up scale easily. Your water mold temperature controller performs reliably every day.

Our quality control includes water circuit pressure testing and flow testing. We put 8 kg of water pressure into the circuit. We hold it for 30 minutes. We check every joint for leaks. Then we use a flow meter to measure the actual pump flow. We make sure it meets the design value. Before each machine leaves the factory, we power it on and set the water temperature to 100°C. We record the time it takes to go from room temperature to 100°C. This confirms the heating power is enough. We offer a free warranty. During the warranty, we repair for free. We give remote guidance. The most common issues with a water mold temperature controller are scale blockages or a leaking pump seal. We teach you how to descale regularly and replace the seal. Our warehouse has heating tubes, pumps, flow switches, controllers, and other parts. We can air-freight them overseas quickly. After the warranty, we give life-long parts and technical support. When you choose our product, you get a fast-heating, high-flow device with dry-heat protection.
